Squares

This is an excellent tool for precise layout work and machinery set-up. Made entirely from stainless steel, the square includes two 2 1/2'' long rules with etched and black-filled markings for legibility. The standard rule is graduated on one face in 32nds and 64ths. The narrow (0.2'' thick) rule, with a 1/2'' long probe on one end, is designed for access into confined spaces,...

The PEC Tools 2" Solid Square has a 2" long blade. The length of blade is measured from inner edge of the beam to the end of the blade. The solid squares have true right angles; both inside and out. (Squareness within 0.0006"). They are made from high quality harden tool steel and the beams and blades are precision ground and hardened. Made in the USA

The PEC Tools 4" Solid Square has a 4" long blade. The length of blade is measured from inner edge of the beam to the end of the blade. The solid squares have true right angles; both inside and out. (Squareness within 0.0006"). They are made from high quality harden tool steel and the beams and blades are precision ground and hardened. Made in the USA

The PEC Tools 9" Solid Square has a 9" long blade. The length of blade is measured from inner edge of the beam to the end of the blade. The solid squares have true right angles; both inside and out. (Squareness within 0.0008"). They are made from high quality harden tool steel and the beams and blades are precision ground and hardened. Made in the USA

The Joseph Marples Trial 1 6" squares have 1/8" thick machined brass on both the inside and outside faces, thus ensuring accuracy on the inside and outside edges. They have a chemically blacked spring steel blade, secured to the stock with brass diamond washers and steel rivets. The accuracy of the try squares is well within that required by BS3322.

The Joseph Marples Trial 1 12" Try Squares have 1/8" thick machined brass on both the inside and outside faces, thus ensuring accuracy on the inside and outside edges. They have a chemically blacked spring steel blade, secured to the stock with brass diamond washers and steel rivets. The accuracy of the try squares is well within that required by BS3322.

This could easily become the most-used measuring tool in your shop. An ideal size for cabinet-making, it has the accuracy of an engineer's square (0.001" per inch of length). All four edges are ground, and both faces are graduated on the inside and outside edges. This version is graduated in half millimetres on the 8cm leg and in millimetres on the 15cm leg. Each is useful not only for general...

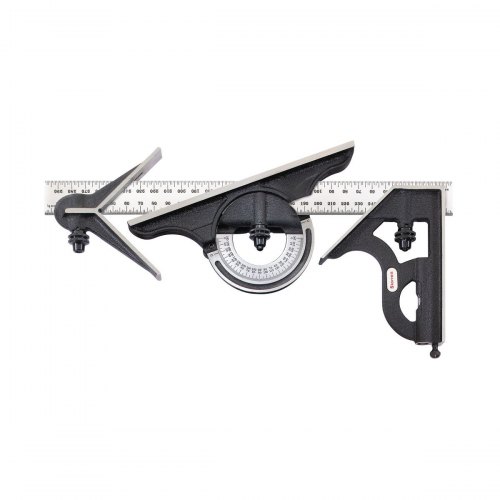

Many have combination squares, they are usually second hand or heirlooms that have been passed down in the family. In many instances the rules are corroded and treatments to removed the rust leave them shiny and more difficult to read. Sterling Tool Works is now offering Premium replacement rules that are precision made in the USA. The rules are chemically etched, etchings blackened, tempered and satin...

Just as a speed square is an essential layout tool for carpenters and framers, these small squares are similar in both form and function but are appropriately sized for laying out joinery and other common workshop tasks. Available individually and as a set including 35mm, 60mm and 85mm squares – each a compact, lightweight tool that fits into a pocket, comes to hand nicely, and is easy to...

The Joseph Marples Trial 1 Double Brass Faced Mitre Square is a tool based on designs that were last made over 70 years ago which were marked with the Trial 1 brand or corporate mark. This high quality Mitre Square has a blade length of 10" (250mm) which is made from chemically blacked spring steel. This Mitre Square is made from either Walnut or Rosewood and has four brass diamond rivets...

Stainless steel mitre square. Measurements on both sides Angular accuracy 45°, 90° & 135°: 0.2 mm or less per 100 mm Base length: 115mm

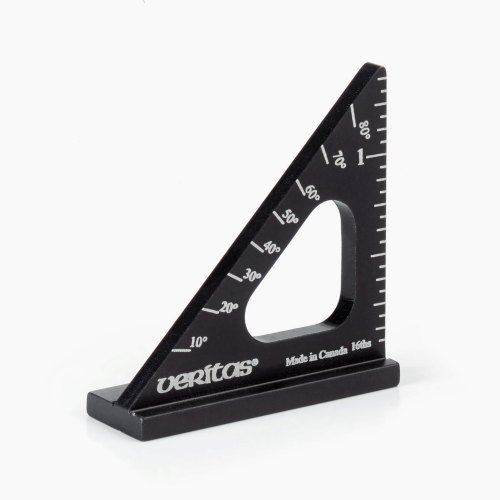

The Veritas Pocket Layout Square is machined from solid aluminium extrusion, anodized and laser etched on both sides, this triangular layout square is only 1½" on a side. The 1/2" wide by 1/8" thick base registers solidly against a workpiece and has a 1/8" offset on one edge and 1/4" on the other. Like a standard layout square, it has 1/16" rule graduations as well as angle graduations in 10°...

These cabinetmaker's squares are used to lay out or transfer measurements quickly and accurately; you always have an ample reference face against your work without having to flip the square. This also simplifies working in two axes at once (e.g., measuring in 50mm and over 40mm), substantially reducing the chance of error when measuring and marking two dimensions. The stainless steel blade is...

A carpenter's square is frequently needed just because of its size. The key disadvantage of such a square (its lack of a supporting fence ledge) can now be eliminated using a Veritas square fence. The 8" (200mm) long anodized aluminum extrusion can be readily attached to either the stock or blade of your square (depending upon intended use) with the two integral brass screws. The face of...
