Dovetail Jigs

A useful aluminium magnetic guide from David Barron for making exact 45° cuts. Great for dovetail mitres, mouldings, picture frames etc.

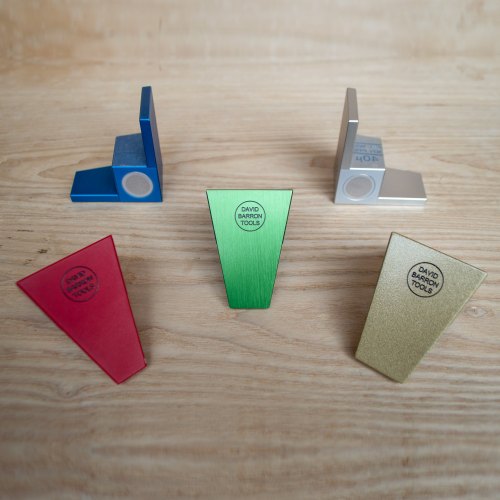

The David Barron Dovetail Guides are back! The 1:6, 1:8 and the 90° guides are now available from stock. The 1:4, 1:5, 1:7, spline, and the 45° guides will follow later this year. The David Barron Dovetail Guide designed to guide a saw with powerful magnets for perfect cuts every time! Cuts both pins and tails, on through and half blind dovetails.

The ever popular Gyokucho Razorsaw Dozuki 240mm Rip saw bundled together with the David Barron 1:6 Dovetail Guide. This is the saw David recommend using with his guides.

The ever popular Gyokucho Razorsaw Dozuki 240mm Rip saw bundled together with the David Barron 1:6 and 1:8 dovetail guides plus the 90 degree guide. This is the saw David recommend using with his guides.

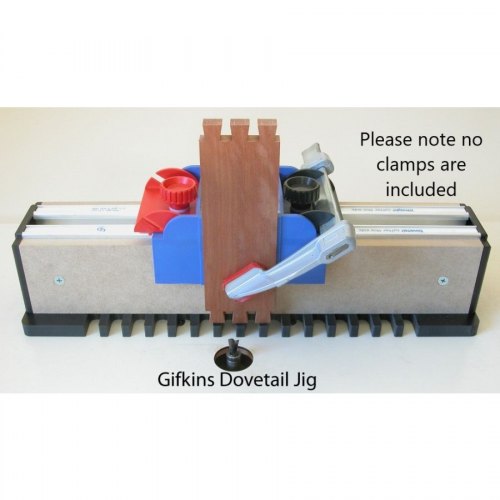

The A10 Gifkins Box Maker's Dovetail Jig. This dovetail template cuts a medium-sized dovetail joint. It’s our most popular template because it offers you—the box maker—a versatile timber thickness range: 5mm to 13mm. The A10 cutters have 1/4-inch cutters. Use thinner timber for delicate boxes and fine insert trays. Use thicker timbers for large jewellery boxes, drawers, file trays,...

For use with the Bessey KliKlamp

The F5 template cuts a joint with delicate 5 mm fingers, and is fully adjustable, maintaining the quality and accuracy that is synonymous with products from Gifkins product range. The template uses a specially designed solid carbide cutter and will handle any thickness up to a maximum of 13 mm. As with dovetailing, the finger joints are cut on a table mounted router, giving the operator much greater...

The H20 template cuts the same sized dovetail joint as the H10 template. The significant difference is a greater distance between pins. The H10 cutters are used with this template. Timber thickness range: 2mm to 10mm. Pin Size 6mm. Pin Spacing 26mm. Min material thickness 2mm. Max material thickness 10mm. Max width 290mm. This kit includes the template, both cutters and spare backing...

Now, you can cut variable sized dovetails with the Variable Spaced Upgrade Kit for the A10 Dovetail Jig. You can adjust the layout of the joint to fit the width of the stock! This also has the advantage of producing a joint that looks more like a hand cut joint! You can achieve symmetrical layout of the joint for any width stock, and still have a half pin top and bottom. The kit includes 5 spaces varying...

The TGAS 12 1/4" is the A10 straight cutter and mate to the dovetail cutter. The A10 dovetail cutter and the A10 straight cutter are designed specifically for the A10 Template. Note: All Gifkins Dovetail cutters are designed for use in a table mounted router, and should not be used in a hand held router.

F15 Finger joint cutter, TGF15 15mm, with a red adjusting sleeve, is designed specifically for use with the F15 Template . Note: All Gifkins Dovetail cutters are designed for use in a table mounted router, and should not be used in a hand held router.

The TGHS 12 1/4" is the H10 straight cutter and mate to the dovetail cutter. The H10 dovetail cutter and the H10 straight cutter are designed specifically for the H10 Template. Note: All Gifkins Dovetail cutters are designed for use in a table mounted router, and should not be used in a hand held router.

The TGBD 16 1/2" is the B10 dovetail cutter and mate to the straight cutter. The B10 dovetail cutter and the B10 straight cutter are designed specifically for the B10 Template. Note: All Gifkins Dovetail cutters are designed for use in a table mounted router, and should not be used in a hand held router.
