Brusso Brass Stop Hinge JB-103

Product Description

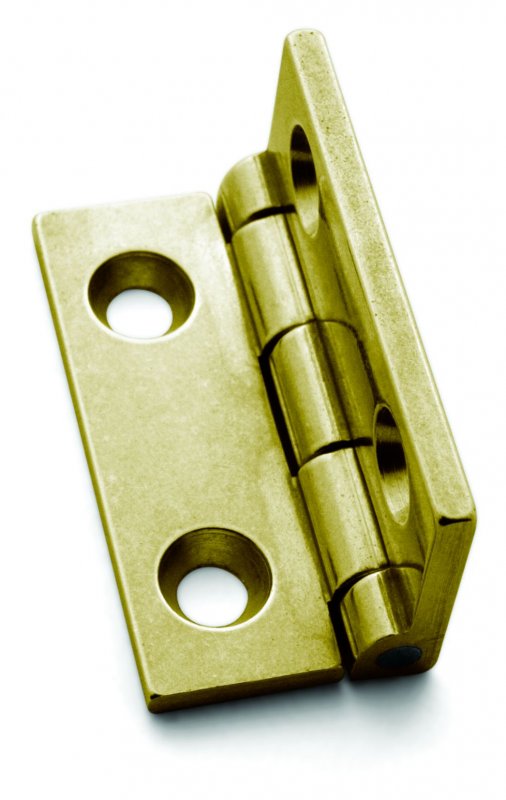

The Brusso JB-103 brass square knuckled full mortice butt hinge is engineered with a built-in stop that allows a lid to remain open at 95°. It is milled from heavy brass stock and can be used when an additional stay is not desired. The leaf measures 1¼" in length.

Length: 1.250" - 1¼" - 32mm
Width: 0.618" - 5/8" - 16mm
Thickness: 0.187" - 3/16" - 5mm
Leaf Thickness: 0.086" - 5/64" - 2mm

!!<>!!NOTE!!<>!! - All Brusso hinges come in PAIRS. Screws are INCLUDED (brass for the brass hinges and stainless for the stainless steel hinges). A single stainless steel screw is also included with the brass hinges. This is used to make a pilot hole for the brass screws to help prevent any damage to the brass screws.

Routing template available: TJ-103
