Brusso Brass Stop Hinge JB-102

Name: Brusso Brass Stop Hinge JB-102
Brand: Brusso
SKU: JB-102
Price: 35.50 GBP
Availability: InStock
Rating: 4 (1 reviews)

Item: JB-102

In stock

1 review

Product Description

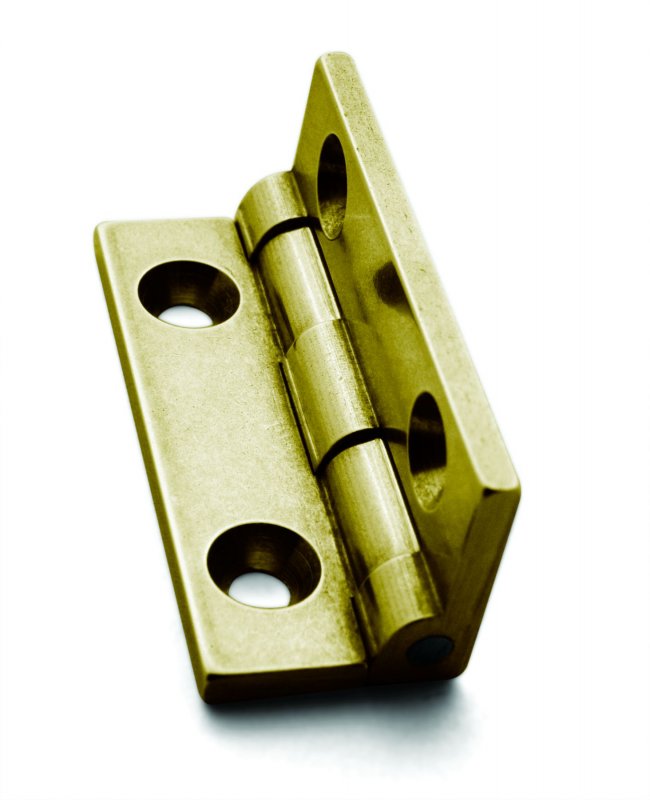

The Brusso JB-102 brass square knuckled full mortice butt hinge is engineered with a built-in stop that allows a lid to remain open at 95°. It is milled from heavy brass stock and can be used when an additional stay is not desired. The leaf measures 1¼" in length.

Length: 1.250" - 1¼" - 32mm
Width: 0.495" - 1/2" - 12mm
Thickness: 0.187" - 3/16" - 5mm
Leaf Thickness: 0.086" - 5/64" - 2mm

NOTE - All Brusso hinges come in PAIRS. Screws are INCLUDED (brass for the brass hinges and stainless for the stainless steel hinges). A single stainless steel screw is also included with brass hinges. This is used to make a pilot hole for the brass screws to help prevent any damage to the brass screws.

Routing template available: TJ-102

View other products in Stop Hinges »

Reviews

Customer Reviews

By Malcolm Shaw on 20th March 2022

"A very good, solidly made, stop hinge. Easy to fit, even without the template. Rather expensive, but the only alternative I have found is cheap, nasty, surface mounted hinges. However, I suggest you throw away the fully threaded supplied screws and replace them with stronger shanked screws. I have used over a dozen pairs of hinges in the past couple of years, so have a bit of experience with them. On woods such as oak, you will need a larger pilot hole than recommended or the heads will shear off. This even applies to the stainless steel screw. "
