Rob Cosman's Marking Gauge Cutters with Rods

Product Description

What Rob says

Its very convenient to switch out marking gauge cutter sizes by just removing the rod with cutter attached and replacing it with a different size cutter attached to a rod.  Therefore, we offer our replacement cutters with rods.  These rods are designed to work with the Rob Cosman marking gauge.  They should fit any marking gauge that accepts a 5/16 inch (7.94mm) diameter rod, but we cannot guarantee that.

All of our cutters come pre-sharpened.  We sharpen these on a CBN grinding wheel which also flushes the face of the screw that holds the cutter to the with the face of the cutter.

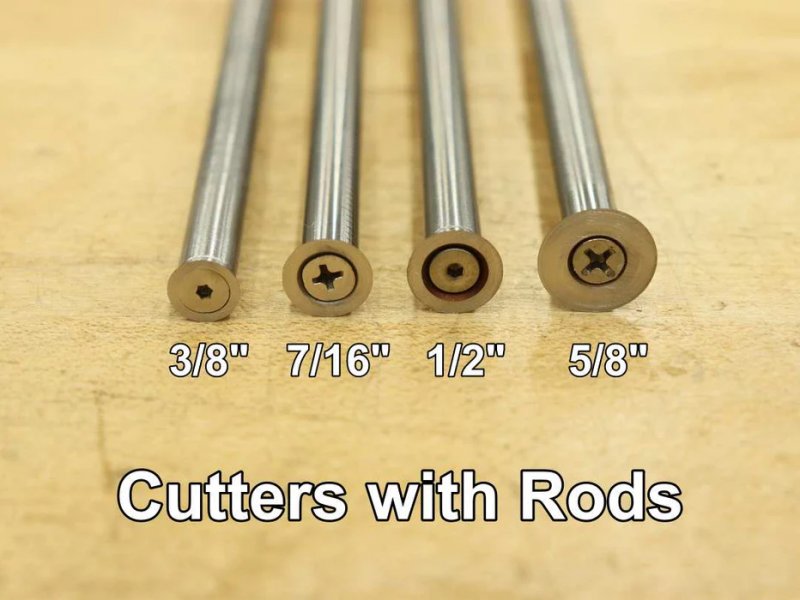

We offer four different sizes of replacement marking gauge cutters with rods.  Each cutter is a different size and has different bevel angles so that you can use the right cutter for the right job.  Our rods come unmarked or etched with inch and millimetre markings.  See below for details:

• 3/8 inch cutter with rod - 40 degree bevel (Best used for cleaning out mortises and sockets). Comes attached to a 5/16 inch (7.94mm) diameter, 7 inches (178mm) long, unmarked rod.  The cutter is attached to the rod with a 6-32 inch threaded end screw with a hex head.  Cutter head only fits a 6-32 inch threaded screw.
• 1/2 inch cutter with rod - 25 degree bevel (Best used as a general purpose cutter in soft or hard woods). Comes attached to a 5/16 inch (7.94mm) diameter, 7 inches (178mm) long, unmarked rod.  The cutter is attached to the rod with 6/32 inch threaded end screw with a hex head.   Cutter head fits both a 6/32 inch threaded screw and a 4 mm threaded screw.
• 7/16 inch cutter with rod - 20 degree bevel (Best used for marking in soft woods). Comes attached to a 5/16 inch (7.94mm) diameter, 7 inches (178mm) long rod etched with inch and millimetre markings.  The cutter is attached to the rod with a 4 mm threaded end screw with a phillips head.   Cutter head fits a 6/32 inch threaded screw or a 4 mm threaded screw.
• 5/8 inch cutter with rod - 35 degree bevel (Best use when marking for angled dovetails). Comes attached to a 5/16 inch (7.94mm) diameter, 7 inches (178mm) long rod etched with inch and millimetre markings. The cutter is attached to the rod with a 4 mm threaded end screw with a phillips head.   Cutter head fits a 6/32 inch threaded screw or a 4 mm threaded screw.
