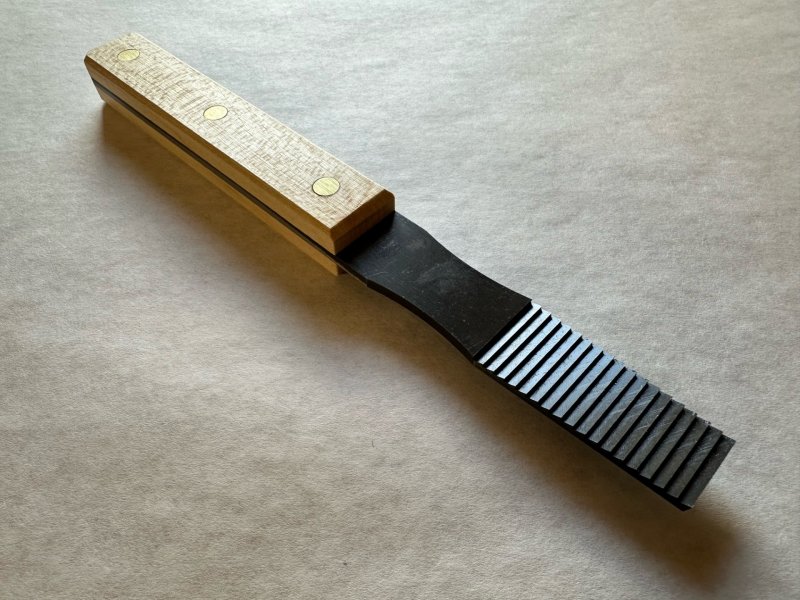

Large Cheek Float - Push

Using Floats

Floats work similarly to files and will perform best with controlled light pressure. Very light pressure will produce finished surfaces by removing small amounts of material. A bit more pressure and they can cut aggressively, but too much pressure will cause difficulty with chattering and digging.

Like many hand tools, let the float do the work. If the surface finish is not satisfactory, try switching to the opposite tooth configuration. This will often make a big difference in cut quality.

With push floats, the first tooth is the most important, and establishes where the other teeth will follow. By tilting the float upward slightly, the first tooth will act as a scraper for heavy stock removal. Because the teeth are only on one face of the tool, they will not cut into adjacent surfaces, making it easy to control where stock is removed.

While the floats can be used as is out of the package, they will benefit from an initial sharpening for the best performance.

How to Sharpen a Float

Sharpening

For sharpening, we recommend a 5''XX slim taper file, the same type used for saw sharpening. These files closely match the tooth profile of the float. The floats are hardened to Rc 50–52, like a saw, and will file easily.

For the initial sharpening, simply file the black oxide coating until the teeth edges are shiny. On floats with wider sections, there may be low spots on the teeth faces. This is normal and a result of the heat-treating process. Only the front of the teeth needs to be filed clean. After the first sharpening, coat the teeth with a felt tip marker for a visual aid when filing. Both the top and front face of each tooth should be addressed with the file. Use light even pressure and do not remove more material than necessary. A sharpening jig consisting of a board with a shallow, 1'' (25mm) wide rebate that the float can be positioned against is helpful.

Jointing

After several sharpenings, the float should be jointed to maintain even tooth height. This is done by draw filing with a single bastard cut file of around 10'' (250mm) in length or so. Hold the file crossways to the float at 90 degrees and lightly push the file forward until a small flat appears on all the teeth. After this, use the felt tip marker again and proceed to sharpen as normal, filing until the flat from jointing just disappears.

The first tooth on push floats should have the front face sharpened to 80 degrees, just like the other teeth. This allows it to be used as a scraper.

Dank Scwank has written a blog about the process, well worth a read HERE.
